What is Courtyard?

What is Courtyard

Video: What is Courtyard?

The AB Courtyard Collection is a two-sided free standing patio wall system that has three main components plus caps - AB Dublin, AB York and a Corner Block. Modification of the blocks may be necessary to build a project. Check out the Courtyard Reference Guide for using the AB Courtyard Collection for more tips and tricks.

Building Blocks for the Outdoors

This versatile system and provides unlimited possibilities. No different than the colorful interlocking toy blocks of your past. Create outdoor spaces that are comfortable yet elegant for entertaining. Incorporate custom gates, counter tops, natural stone or pavers as beautiful accents for even more style. Illuminate the evening easily by adding lighting to the landscape. Choose between the two textures as well as create a pattern with the different block shapes in your project for a custom look that endures the test of time.


The AB Courtyard Collection is available in two different textures, Courtyard and Old Country Courtyard.

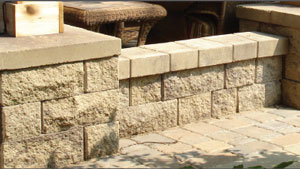

AB Courtyard Texture

Courtyard - Cut Stone Look

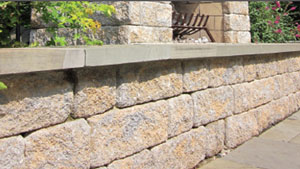

AB Courtyard Tumbled Texture

Old Country Courtyard - Tumbled/Antiqued

Check with your local AB Dealer/Distributor for color selection and availability.

AB Courtyard Collection / AB Old Country Courtyard Collection
Name Weight Approximate Dimensions
(H x D x L)
AB Dublin
39 lbs
18 kg

6 in. x 7 in. x 16.5 in.
150 mm x 180 mm x 420 mm

Color Availability is determined in each local area. Contact your local retailer for a list of available colors in your area.

Available in the classic cut stone look of Courtyard or the tumbled old world look of Old Country CourtyardS
AB York
20 lbs
9 kg

6 in. x 7 in. & 7.5 in. x 9 in.
150mm x 180mm & 190mm x 230mm

AB Corner Block
42 lbs
19 kg

6 in. x 7 in. x 15 in. & 15.5 in.
150mm x 180mm x 375mm & 400mm

AB Wall Cap
22 lbs
10 kg

3.5 in. x 10 in. x 7 in. & 9.25 in.
90mm x 250mm x 180mm & 235mm

AB Wall Post Cap
70 lbs
32 kg

3 in. x 12 in. x 24 in.
75mm x 305mm x 610mm

All measurements shown are for reference only. Actual dimensions, weights and setbacks will vary by manufacturer. Check with your local Allan Block manufacturer for exact specifications and color availability.

Download Block Shape Images


Using the AB York and the AB Dublin together in random patterns will create an added dimension and style to any project.

AB Courtyard Pattern

Unfortunately this product is currently not available in your area. For more information go to www.allanblock.com
