Water Application

Retaining walls constructed in conditions where there is moving water (streams), standing water with wave action (lakes), or retention ponds are considered water applications.

Water applications must be evaluated and designed to fit the unique characteristics of the site. Consult with a local qualified engineer for design assistance. See more applications for design ideas.

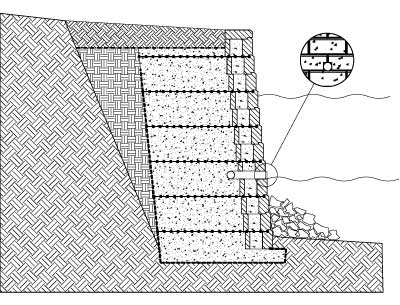

Water Application Retaining Wall
Water Application Retaining Wall
