Your Home is Your Castle
Inspired by the city walls of ancient civilizations, AB Fence adds a refined style to any enclosure. Surround your sanctuary with a champion, AB Fence.
Let nature be the only sound you hear.
AB Fence is a mortarless concrete fence system that uses maintenance free interlocking blocks to create an attractive and effective solution for sound abatement, security, privacy and more. With a clean, crisp architectural look, AB Fence is sure to be the product of choice.
Product Features ↴
The System
AB Ashlar Blend™
Fence Panels
This concrete fence uses posts and panels like many typical fence systems to construct beautiful and durable concrete structures that will stand the test of time. The AB Fence Blocks have a split-faced look on one side and striated look on the other side. This gives the AB Fence System the ability to offer many different looks and styles without having to order any special blocks. Incorporating different color blocks to form patterns or banding within the panels and posts allows for even more options.
The AB Fence Blocks lock together to create posts and panel sections that are versatile and stack up quickly for easy installation, which saves you time and money. The system can incorporate curves and corners with ease and use different colored/textured or multiple shaped blocks to create beautiful patterned fences.

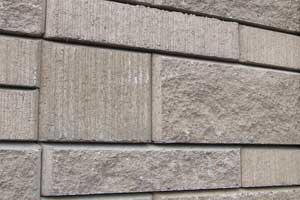

Patterned Walls
The design possibilities are endless. Use the blocks from the AB Fence System blended together to create AB Ashlar Blend patterned fence panels.
The Blocks ↴
| AB Fence System | |||||
| Name | Weight | Approximate Dimensions | |||
 AB Fence Post Block |
70 lbs 35 kg |
8 in. H x 12 in. D x 18 in. L 200mm H x 305mm D x 460mm L |
|||
 AB Fence Panel Block |
50 lbs 25 kg |
8 in. H x 6 in. D x 18 in. L 200mm H x 150mm D x 460mm L |
|||
 AB Fence Lite Panel Block |
25 lbs 10 kg |
4 in. H x 6 in. D x 18 in. L 100mm H x 150mm D x 460mm L |
|||
 AB Fence Half Panel Block |
25 lbs 10 kg |
8 in. H x 6 in. D x 9 in. L 200mm H x 150mm D x 230mm L |
|||
 AB Fence Half Lite Panel Block |
13 lbs 5 kg |
4 in. H x 6 in. D x 9 in. L 100mm H x 150mm D x 230mm L |
|||
 AB Fence Corner Block |
50 lbs 25 kg |
8 in. H x 12 in. D x 12 in. L 200mm H x 305mm D x 305mm L |
|||
 AB Fence Cap Block |
60 lbs 30 kg |
5 in. H x 12 in. D x 18 in. L 130mm H x 305mm D x 460mm L |
|||
 AB Fence Large Post Block |
120 lbs 54 kg |
8 in. H x 20 in. D x 18 in. L 200mm H x 510mm D x 460mm L |
|||
| All specifications are approximate. Check with your local Allan Block manufacturer for exact specifications and color availability. Download Block Shape Images |
|||||
Block Colors ↴
Looking for colors available in your area? Each of our local manufacturer's produce their own selection of colors. To find the color options near you, use our Find a Store locator. Select a retailer to check out the colors that they carry.
New AutoCAD Macro Tool Makes Drawing your AB Fence Easy
Allan Block makes it easy to draw your fence panels. The Fence Macro for AutoCAD allows you to configure your patterns to fit any project requirements. It helps lay out multiple panels, detailed panel drawings, panel sections, and post sections. Learn more about the great plug in to AutoCAD and download it for free here.
