Design Example
This example shows typical design calculations for a concrete fence using the Allan Block Fence. For definitions of variables, see the AB Fence Engineering Manual for terminology.

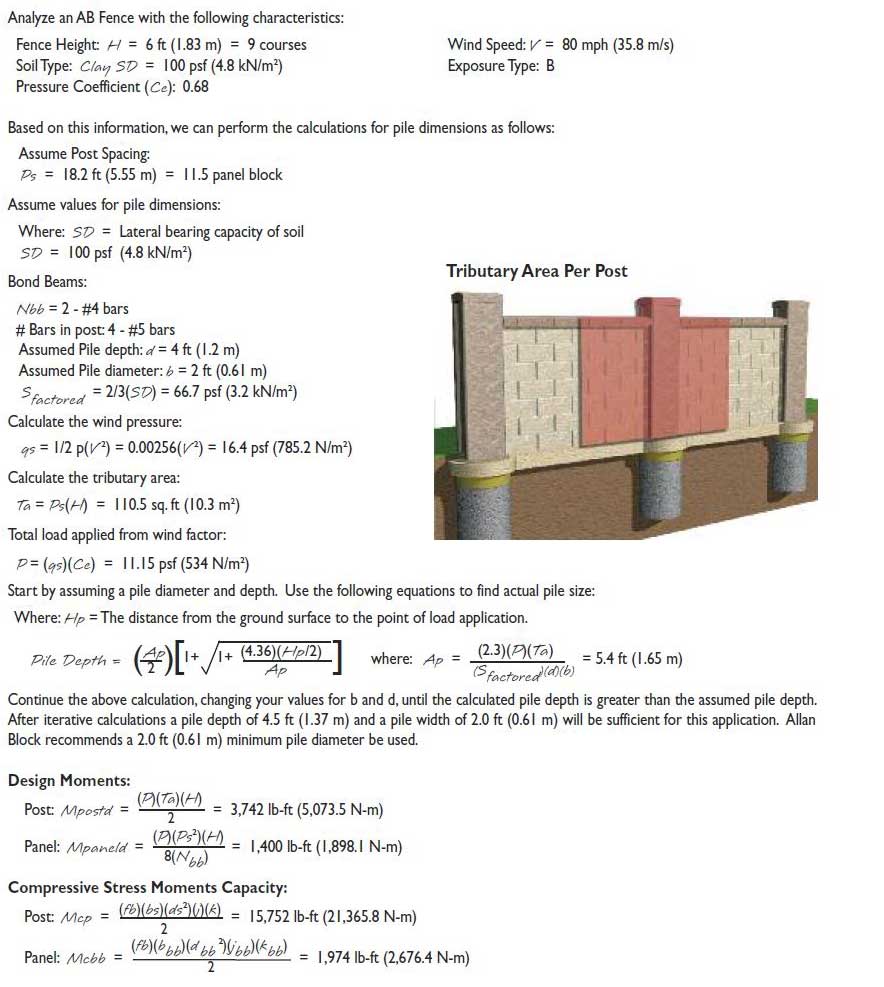

![Fence Design Calcualtions:Tributary Area Per Post Concrete Fence Design Calcualtions:Tributary Area Per Post](images/DesignCalcExample1.jpg)

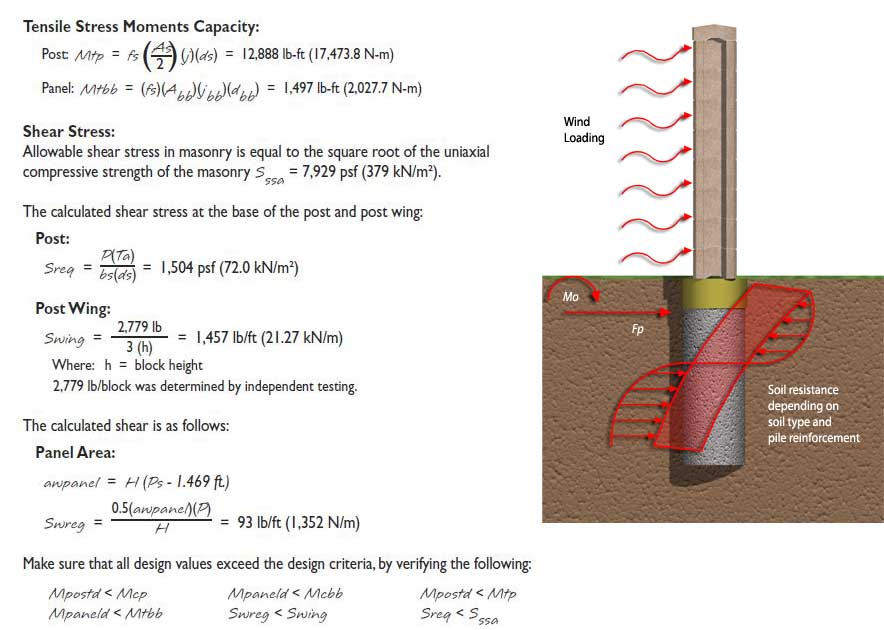

![Concrete Fence Design Calcualtions: Wind Loading Concrete Fence Design Calcualtions: Wind Loading](images/DesignCalcExample2.jpg)
NOTE: For complete engineering details for AB Fence Systems, please contact the Allan Block Engineering Dept. at (800) 899-5309.
